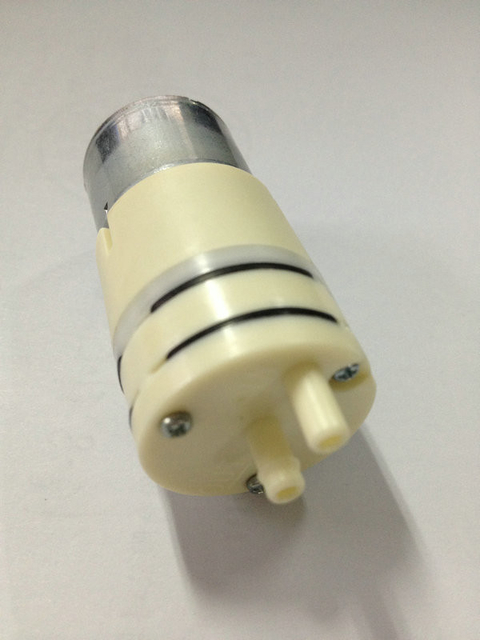

PBA12-1.5S Super Quiet Micro Air Pump For Fish Tank / Brushless Dc Oem Vacuum Pumps
Quick Detail:
| Place of Origin: | Zhejiang China (Mainland) | Brand Name: | Cinh or Blank | Model Number: | PBA12-1.5S |
| Theory: | Electromagnetic Pump | Structure: | Diaphragm Pump | Usage: | Air Pump |
| Power: | Electric | Flowrate: | 1.3L/m air flowrate | Fuel: | Electric |
| Pressure: | 90kPA, -40kPA | Application: | pressing or sucking gas |
Brushless DC micro air pump
1.Brushless motor, super long lifetime, super quiet
2.More than 90kPa pressure, -40kPa suction and 1.3-1.5L/m air flowrate
3.Speed adjustable and controllable with square wave signal
4. Corrosive resistance advanced pump film, can carry chemical gas
5. lifetime more than 8000hours continuously working day and night
6. size is ∮27x59.7mm
7. Outlet & Inlet Dia: 4mm
8. weight: 60g
Description:
CINH Brushless DC micro air pump PBA12-1.5S use a DC brushless motor design that has the capability of over 80000 hours of continuous maintenance-free operation. It is compact, very quiet, highly reliable and inexpensive, and chemical resistance, with speed controllable and adjustable function.
Features
> Compact size
> Steady air outputs with low noise
> Low power consumption
> Economical
> Very low vibration
Applications:
syringe pump
ink machine
intermittend pneumatic compression(medical)
compression therapy
ozone generator
recovery system
fragrance diffuser
air bed
Household appliance
Atmospheric Detection
Dosing chemical material
Battery driving air pump
Aquarium
Specifications:
Model: PBA12-1.5S
Type : Brushless DC micro air pump
Rated Voltage: DC12V, DC24V
Flowrate: 1.3- 1.5L/m
Consumption current: 320mA
Vacuum achievement degree:More than -40kPa
Max pressure: more than 90 kPa
Coil insulation classfication: A type
Endurance time: more than 8000 hours
Operating noise: Less than 30dB
Starting voltage: 8V
Weight: 60g
Operating Environmental Temperature: 5-50.c
Operating Environmental Humidity: 0-90%RH

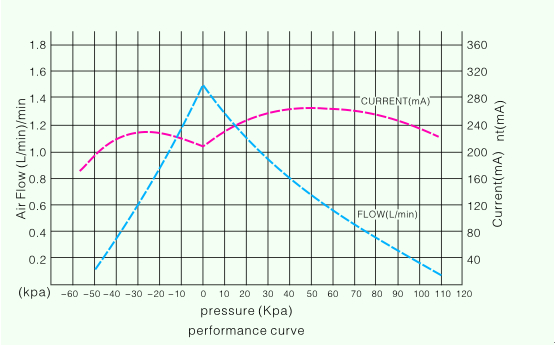

Performance Curve

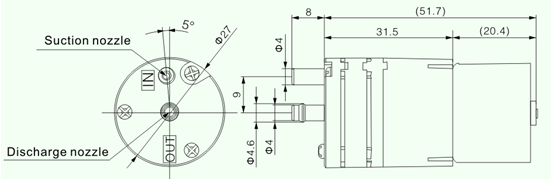

Size
Competitive Advantage:
long lifetime, low noise, high quality, 1.3-1.5L/M air flowrate and 90kpa pressure, with chemical resistance pump film, can carry chemical gas, RPM speed adjustable and controllable, energy saving suitable for battery driving, DC micro air pump
