Low Vibration Blood Pressure Air Pump , Dia 4mm 2.4L/M 100KPA

Low Vibration Blood Pressure Air Pump , Dia 4mm 2.4L/M 100KPA

Quick Detail:

Brushless DC Blood Pressure Air Pump

1.Brushless motor, super long lifetime, super quiet

2.More than 100kPa pressure, and 2-2.4L/m air flowrate

3.Speed adjustable and controllable with square wave signal

4. Corrosive resistance advanced pump film, can carry chemical gas

5. lifetime more than 8000hours continuously working day and night

6. size is ∮27x59.7mm

7. Outlet & Inlet Dia: 4mm

8. weight: 60g

Description:

CINH Brushless DC Blood Pressure Air Pump PBA12-2.4S use a DC brushless motor design that has the capability of over 80000 hours of continuous maintenance-free operation. It is compact, very quiet, highly reliable and inexpensive.

Features

> Compact size

> Steady air outputs with low noise

> Low power consumption

> Economical

> Very low vibration

Applications:

syringe pump

ink machine

intermittend pneumatic compression(medical)

compression therapy

ozone generator

recovery system

fragrance diffuser

air bed

Household appliance

Atmospheric Detection

Dosing chemical material

Battery driving air pump

Aquarium

Specifications:

Model: PBA12-2.4S

Type: Brushless DC Blood Pressure Air Pump

Rated Voltage: DC12V, DC24V

Flowrate: 2-2.4L/m

Consumption current: 240mA

Vacuum achievement degree:----------

Max pressure: more than 100 kPa

Coil insulation classfication: A type

Endurance time: more than 8000 hours

Operating noise: Less than 30dB

Starting voltage: 9V

Weight: 60g

Operating Environmental Temperature: 5-65.c

Operating Environmental Humidity: 0-90%RH

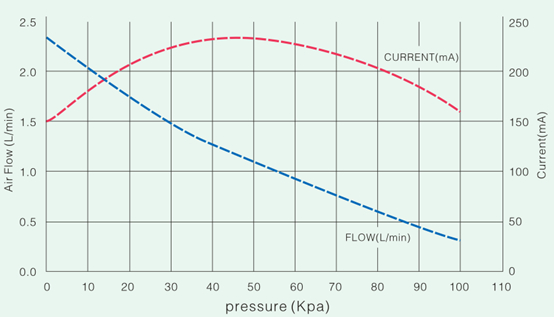

Performance Curve

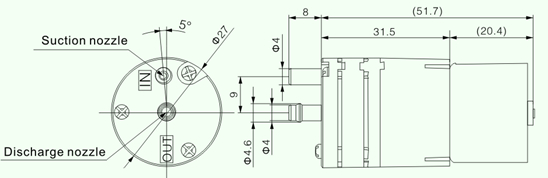

Size

Competitive Advantage:

long lifetime, low noise, high quality, 2-2.4L/M air flowrate and 100kpa pressure, with chemical resistance pump film, can carry chemical gas, RPM speed adjustable and controllable, energy saving suitable for battery driving, DC Blood Pressure Air Pump
